Analysis framework for rotation period extraction (MSAP4-03)#

This notebook provide an example of the analysis performed by the PLATO MSAP4-03 submodules: results from Lomb-Scargle periodogram, autocorrelation functions and composite spectrum are used to produce a set of features exploited by an existing instance of ROOSTER to return the final rotation period of the analysed target. You will find that what is done here is very similar to the ROOSTER tutorial notebook (rooster_training_framework, you should run it before doing this tutorial), the only big difference is actually that we will use here a pre-trained ROOSTER instance !

Here, the MSAP4-01A and MSAP4-02 steps required to feed MSAP4-03 are included in order to be able to run this notebook independently from the MSAP4-01A and MSAP4-02 notebooks.

Note that, due its significant computing time, the MSAP4-01B component dedicated to background analysis is executed independently in another notebook.

Note: This notebook has been designed for the purpose of scientific justification of MSAP4-03. The notebook illustrated the precise flowchart envisaged for MSAP4-03 is cs_rooster_sph_analysis.ipynb

import star_privateer as sp

A simple example#

import importlib
import tqdm
import os
import numpy as np
import matplotlib.pyplot as plt

if not os.path.exists ('stellar_analysis_features') :
    os.mkdir ('stellar_analysis_features')
if not os.path.exists ('stellar_analysis_plots') :
    os.mkdir ('stellar_analysis_plots')

Our working case is KIC 3733735, a well-known Kepler fast rotating star.

filename = sp.get_target_filename (sp.timeseries, '003733735')
t, s, dt = sp.load_resource (filename)

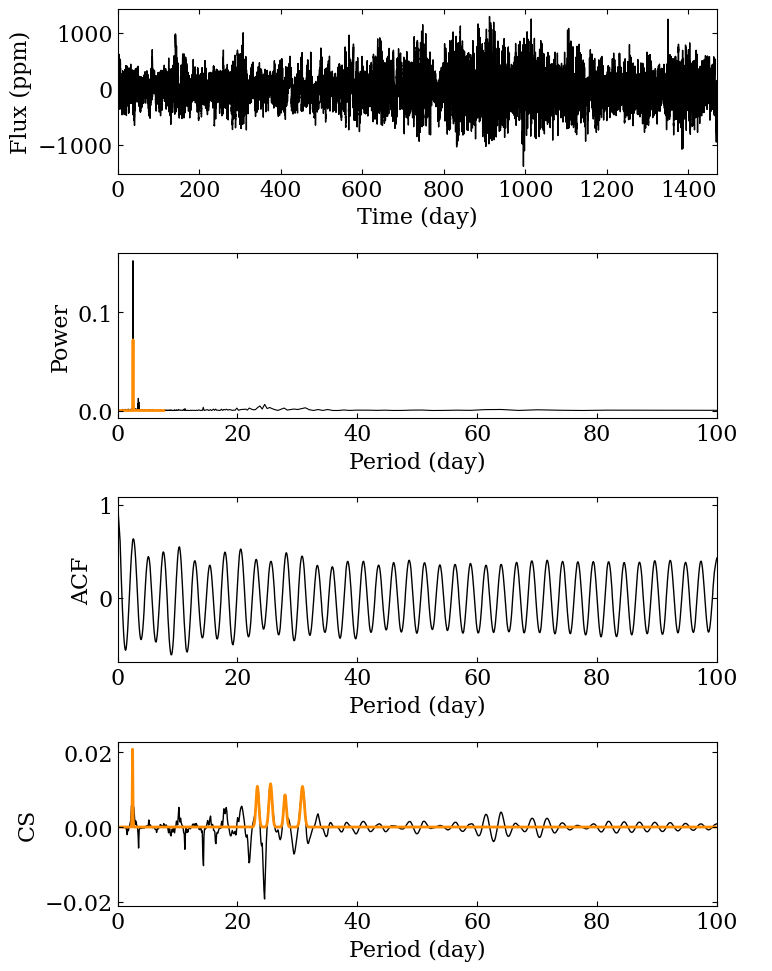

The first thing we have to do is run the analysis pipeline. In particular, we can take a look at the plots made from the different analysis methods.

p_in = np.linspace (0, 100, 1000)
(p_ps, p_acf, ps, acf,
 cs, features, feature_names, _) = sp.analysis_pipeline (t, s, periods_in=p_in, figsize=(8,10),
                                                            wavelet_analysis=False, plot=True,
                                                            filename='stellar_analysis_plots/003733735.png',
                                                        )
../../_images/stellar_analysis_framework_7_0.png

We then save the results to a csv file:

fileout = 'stellar_analysis_features/003733735.csv'
df = sp.save_features (fileout, 3733735, features, feature_names)

As in the previous tutorial, let’s build a feature catalog. This is actually not required here because we are analysing only one star, but this step allows to ROOSTER-analyse several stars together with a simple framework.

df = sp.build_catalog_features ('stellar_analysis_features')

Then, let’s load the ROOSTER instance that we have trained in the previous tutorial:

chicken = sp.load_rooster_instance (filename='rooster_instances/rooster_tutorial')

As previously, let’s split the DataFrame into ROOSTER required inputs:

(target_id, p_candidates,
 e_p_candidates, E_p_candidates,
 features, feature_names) = sp.create_rooster_feature_inputs (df, return_err=True)

Here, we can see that there is actually (almost) nothing to do, as the three methods have yielded the same \(P_\mathrm{rot}\) estimate. However, we need ROOSTER to provide us with the rotation score of the target. ROOSTER will also select one of the three p_candidates as the final estimate for our target.

p_candidates

array([[2.55994471, 2.59507401, 2.49247385]])

The analyseSet function implemented in ROOSTER allows to analyse the features we extracted with the analysis pipeline. By providing feature_names, we ensure that ROOSTER was trained with the same features that those we extracted.

rotation_score, prot, e_p, E_p = chicken.analyseSet (features, p_candidates, e_p_err=e_p_candidates,
                                                     E_p_err=E_p_candidates, feature_names=feature_names)

We finally get the rotation score and the final \(P_\mathrm{rot}\). A rotation score above 0.5 means that the ROOSTER analysis favours a detection of stellar surface rotation signal.

rotation_score, prot, e_p, E_p

(array([0.82]), array([2.55994471]), array([0.0604509]), array([0.0634239]))

Analysing a PLATO simulated light curves dataset#

In order to illustrate the pipeline features described above, we can apply the pipeline to a larger dataset of 255 PLATO simulated light curves in order to check what we recover.

import plato_msap4_demonstrator_datasets.plato_sim_dataset as plato_sim_dataset

if not os.path.exists ('plato_sim_features') :
    os.mkdir ('plato_sim_features')
if not os.path.exists ('plato_sim_plots') :
    os.mkdir ('plato_sim_plots')

list_id = sp.get_list_targets (plato_sim_dataset)

Note that in the current version of the demonstrator, we apply a 55-day high-pass finite impulse response filter to the simulated light curves (preprocess) function in order to remove low-frequency systematics while preserving at most the signature of stellar activity in the data. In the future, data product calibrated specifically for MSAP4 or dedicated calibration step aimed at reducing systematics at most would allow to significantly improve the analysis performances.

for elt in tqdm.tqdm (list_id) :
    str_elt = str (elt).zfill (3)
    fileout = 'plato_sim_features/{}.csv'.format(str_elt)
    filename = sp.get_target_filename (plato_sim_dataset, str_elt, filetype='csv')
    if not os.path.exists (fileout) :
        t, s, dt = sp.load_resource (filename)
        s = sp.preprocess (t, s, cut=55)
        (p_ps, p_acf, ps, acf,
         cs, features, feature_names, _) = sp.analysis_pipeline (t, s, periods_in=p_in,
                                                                    wavelet_analysis=False, plot=True,
                                                                    filename='plato_sim_plots/{}.png'.format(str_elt),
                                                                    figsize=(10,16),
                                                                    lw=1, dpi=300, smooth_acf=True)
        df = sp.save_features (fileout, str_elt, features, feature_names)

100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 255/255 [00:00<00:00, 44256.53it/s]

We can now analyse the obtained features with ROOSTER to provide our final results.

df = sp.build_catalog_features ('plato_sim_features')
(target_id, p_candidates,
 e_p_candidates, E_p_candidates,
 features, feature_names) = sp.create_rooster_feature_inputs (df, return_err=True)
rotation_score, prot, e_p, E_p = chicken.analyseSet (features, p_candidates, e_p_err=e_p_candidates,
                                                     E_p_err=E_p_candidates, feature_names=feature_names)
df
prot_ps prot_acf prot_cs e_prot_ps E_prot_ps e_prot_acf E_prot_acf e_prot_cs E_prot_cs sph_ps sph_acf sph_cs h_ps fa_prob_ps hacf gacf hcs
target_id
0 43.384664 32.631736 29.219674 1.152496 1.216480 -1.0 -1.0 1.242817 1.242817 754.547891 747.270985 722.371710 0.243752 0.000000e+00 0.204530 0.417558 0.457579
1 33.054982 11.208262 16.348645 4.861871 6.916978 -1.0 -1.0 3.874861 3.874861 196.002432 197.573001 217.818959 0.016114 0.000000e+00 -0.154258 0.000649 0.489209
2 17.353865 18.215161 17.308824 2.362525 3.234358 -1.0 -1.0 0.424494 0.424494 130.530199 132.035535 130.541438 0.083866 0.000000e+00 0.271299 0.626426 0.889873
3 21.034988 20.923477 20.924822 2.248453 2.852080 -1.0 -1.0 0.727613 0.727613 107.469907 107.619504 107.619504 0.152170 0.000000e+00 0.552096 1.054497 0.983289
4 28.923109 7.708284 8.893554 0.722536 0.760135 -1.0 -1.0 2.896222 2.896222 156.269982 149.832641 149.472409 0.011790 4.780577e-250 -0.077873 0.002125 0.357145
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
250 31.552483 29.027592 31.219175 5.676881 8.918001 -1.0 -1.0 3.982823 3.982823 215.787517 205.336661 202.222122 0.160314 0.000000e+00 0.561387 1.081777 0.855115
251 20.416312 19.117933 20.219246 2.109279 2.665563 -1.0 -1.0 1.734646 1.734646 184.403461 175.416258 184.363934 0.160625 0.000000e+00 0.397343 0.852581 0.851365
252 36.534454 37.638648 36.899833 4.307302 5.618974 -1.0 -1.0 4.736251 4.736251 1353.429169 1370.863674 1358.401532 0.250936 0.000000e+00 0.752538 1.515209 0.986710
253 17.353865 17.416555 17.478516 3.479639 5.770656 -1.0 -1.0 2.233398 2.233398 163.173697 163.119816 163.063621 0.078761 0.000000e+00 0.332430 0.760885 0.981911
254 18.760936 18.819324 19.007517 2.696398 3.768938 -1.0 -1.0 0.604807 0.604807 1162.545259 1161.618942 1157.821920 0.253955 0.000000e+00 0.343084 0.878379 0.973676

255 rows × 17 columns

Next, let’s load the reference catalog for these simulated light curves in order to compare the results from our pipeline with what was injected in the data.

prot_ref = sp.get_prot_ref (target_id, catalog='plato-sim')
cond_0 = (rotation_score>0.5)
cond_1 = (np.abs (prot - prot_ref) < 0.1 * prot_ref)
cond_2 = (np.abs (prot - prot_ref) < 0.1 * prot_ref) & (rotation_score>0.5)
score_0 = target_id[cond_0].size / target_id.size
score_1 = target_id[cond_1].size / target_id.size
score_2 = target_id[cond_2].size / target_id.size
score_0, score_1, score_2

(0.9450980392156862, 0.6274509803921569, 0.6078431372549019)

The score computed here means that we were able to successfully detect a rotation signal and recover the correct rotation period for about 61% of the stars in the sample. We can take a look at histograms to check the rotation score of our population and to compare the input rotation periods distribution to the one we recover.

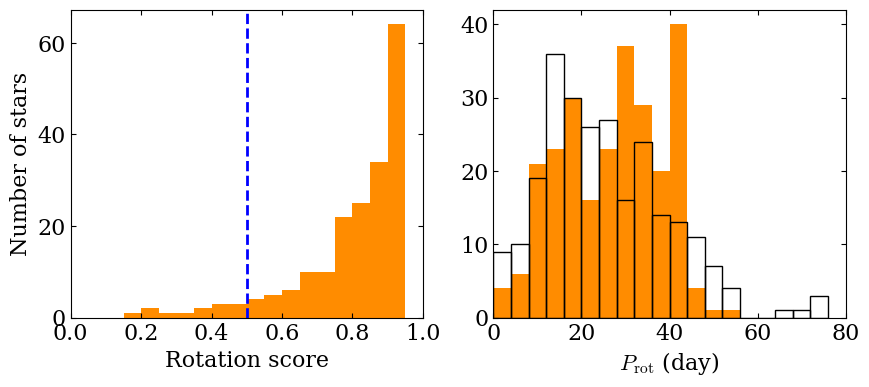

fig, (ax1, ax2) = plt.subplots (1, 2, figsize=(10, 4))

bins = np.linspace (0, 1, 20, endpoint=False)
ax1.hist (rotation_score, bins=bins, color='darkorange')
ax1.axvline (0.5, ls='--', color='blue', lw=2)
bins = np.linspace (0, 80, 20, endpoint=False)
ax2.hist (prot, bins=bins, color='darkorange')
ax2.hist (prot_ref, bins=bins, facecolor='none',
         edgecolor='black', label='Ref')

ax1.set_ylabel (r'Number of stars')
ax1.set_xlabel (r'Rotation score')
ax2.set_xlabel (r'$P_\mathrm{rot}$ (day)')

ax1.set_xlim (0, 1)
ax2.set_xlim (0, 80)

(0.0, 80.0)
../../_images/stellar_analysis_framework_32_1.png
