ROOSTER training framework (MSAP4-03)#

This notebook provide an example of the analysis of a set of stars with catalog-existing reference \(P_\mathrm{rot}\), and use the set to train an instance of ROOSTER.

First we need to import the demonstrator module and the auxiliary module containing the dataset we are going to work with.

Note: This notebook has been designed for the purpose of scientific justification of PLATO MSAP4-03. The notebook illustrated the precise flowchart envisaged for PLATO MSAP4-03 is cs_rooster_sph_analysis.ipynb

import star_privateer as sp
import plato_msap4_demonstrator_datasets.kepler_dataset as kepler_dataset

We also need to import some other modules to run the notebook and to check that the outputs directory that we need exist

import importlib
import tqdm
import os
import numpy as np
import matplotlib.pyplot as plt

if not os.path.exists ('rooster_training_features') :
    os.mkdir ('rooster_training_features')
if not os.path.exists ('rooster_training_plots') :
    os.mkdir ('rooster_training_plots')
if not os.path.exists ('rooster_instances') :
    os.mkdir ('rooster_instances')

Running the analysis pipeline#

We are going to work with a sample of 1991 Kepler stars analysed by Santos et al. (2019, 2021). The light curves have been calibrated with the KEPSEISMIC method (see García et al. 2011, 2014), and all of them have been filtered with a 55-day high-pass filter. We can get the identifiers of the stars in the dataset with the following instruction:

list_kic = sp.get_list_targets (kepler_dataset)

The next step is to run the analysis pipeline on every light curve in the dataset. The analysis pipeline in its default behaviour will compute the Lomb-Scargle periodogram (LSP) of the light curve as well as its auto-correlation function (ACF). ACF and LSP will then be used to compute a composite spectrum (CS), obtained by multiplying one by another. The feature computed for each stars are stored in a dedicated csv file identified by the star identifier (in this case, the KIC of the star).

p_in = np.linspace (0, 100, 1000)
for kic in tqdm.tqdm (list_kic) :
    str_kic = str (kic).zfill (9)
    fileout = 'rooster_training_features/{}.csv'.format(str_kic)
    filename = sp.get_target_filename (kepler_dataset, str_kic)
    if not os.path.exists (fileout) :
        t, s, dt = sp.load_resource (filename)
        (p_ps, p_acf, ps, acf,
         cs, features, feature_names, _) = sp.analysis_pipeline (t, s, periods_in=p_in,
                                                                    wavelet_analysis=False, plot=True,
                                                                    filename='rooster_training_plots/{}.png'.format(str_kic),
                                                                    figsize=(10,16),
                                                                    lw=1, dpi=300, smooth_acf=True)
        df = sp.save_features (fileout, kic, features, feature_names)

100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 1991/1991 [00:00<00:00, 54489.96it/s]

After running the analysis pipeline, it is possible to concatenate the feature obtained for each star into one big DataFrame.

df = sp.build_catalog_features ('rooster_training_features')

This is typically what the DataFrame is going to look like:

df

	prot_ps	prot_acf	prot_cs	e_prot_ps	E_prot_ps	e_prot_acf	E_prot_acf	e_prot_cs	E_prot_cs	sph_ps	sph_acf	sph_cs	h_ps	fa_prob_ps	hacf	gacf	hcs
target_id
891901	73.598094	5.006284	52.030213	0.882710	0.904334	-1.0	-1.0	5.782646	5.782646	782.552118	604.416480	773.134552	0.121354	0.0	0.633684	0.265200	0.095594
1162339	73.048392	39.232722	52.151878	11.328352	16.348211	-1.0	-1.0	1.333511	1.333511	2266.134459	2082.090930	2150.902737	0.285520	0.0	-0.568057	0.001484	0.069160
1163248	73.048768	59.666638	91.054035	10.510133	14.697001	-1.0	-1.0	4.333269	4.333269	541.300214	541.808769	551.965885	0.092878	0.0	0.169691	0.373241	0.883819
1164583	50.378386	43.850828	46.669255	12.525927	25.164926	-1.0	-1.0	5.785335	5.785335	1650.421415	1644.008810	1698.895451	0.124362	0.0	0.342296	0.678006	0.467618
1433067	73.048497	35.329934	47.031677	11.612365	16.946332	-1.0	-1.0	1.742899	1.742899	1219.810610	1192.928427	1197.588777	0.175185	0.0	-0.559881	0.000288	0.140650
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
12647815	10.435607	10.400735	10.457896	0.403142	0.436987	-1.0	-1.0	0.152860	0.152860	4727.467867	4733.483163	4721.753966	0.262546	0.0	0.627364	1.026059	0.532050
12737258	40.582931	77.586648	69.544307	4.159244	5.218136	-1.0	-1.0	3.577662	3.577662	2135.495994	2155.693110	2164.787863	0.146861	0.0	0.431254	-1.000000	0.542491
12784167	18.262306	12.505398	91.216340	0.824439	0.905366	-1.0	-1.0	3.206358	3.206358	632.040500	609.092436	650.432771	0.072066	0.0	0.102950	0.000197	2.136317
12834290	52.692311	56.049453	53.100597	10.789249	18.146115	-1.0	-1.0	1.528117	1.528117	528.632031	525.789101	531.063571	0.079475	0.0	0.100199	0.262818	0.675579
12834663	89.966120	13.118167	91.094432	8.178801	9.996320	-1.0	-1.0	8.891671	8.891671	1084.671035	996.803485	1084.671035	0.280246	0.0	0.147318	0.006072	1.505906

1991 rows × 17 columns

Training and testing ROOSTER#

Now that we have analysed a large sample of stars, we are able to use it to train the random forest ROOSTER methodology (see Breton et al. 2021). First, let’s (arbitrarily) divide our DataFrame into a training set and a test set.

df_train = df.loc[df.index[::2]]
df_test = df.loc[df.index[1::2]]

The DataFrames let us obtain all the input we require to train and test ROOSTER:

training_id, training_p_candidates, training_features, feature_names = sp.create_rooster_feature_inputs (df_train)
test_id, test_p_candidates, test_features, test_feature_names = sp.create_rooster_feature_inputs (df_test)

Now, let’s instantiate a new ROOSTER object. The main attributes of ROOSTER are its two random forest classifiers, RotClass and PeriodSel. The properties of these classifiers can be specified by the user by passing the optional arguments of sklearn.ensemble.RandomForestClassifier to the created ROOSTER instance.

seed = 104359357
chicken = sp.ROOSTER (n_estimators=100, random_state=np.random.RandomState (seed=seed))
chicken.RotClass, chicken.PeriodSel

(RandomForestClassifier(random_state=RandomState(MT19937) at 0x133970840),
 RandomForestClassifier(random_state=RandomState(MT19937) at 0x133970840))

The training is performed as follows:

chicken.train (training_id, training_p_candidates,
               training_features, feature_names=feature_names,
               catalog='santos-19-21', verbose=True)

Training RotClass with 405 stars with detected rotation and 494 without detected rotation.
Training PeriodSel with 405 stars.

Once properly trained, ROOSTER performances can be assessed with our test set:

results = chicken.test (test_id, test_p_candidates, test_features,
                        feature_names=test_feature_names,
                        catalog='santos-19-21', verbose=True)

Testing RotClass with 393 stars with detected rotation and 501 without detected rotation.
Testing PeriodSel with 393 stars.

The score obtained during the test set can be accessed through the getScore function, as well as the number of elements used for the training and the test steps.

chicken.getScore ()

(0.9295302013422819, 0.9033078880407125)

chicken.getNumberEltTrain ()

(899, 405)

chicken.getNumberEltTest ()

(894, 393)

The \(P_\mathrm{rot}\) computed by ROOSTER for the test set are returned when calling the function and it can be interesting to plot the distribution to compare it to the reference catalog values.

prot_rooster = results[3]
prot_ref = sp.get_prot_ref (results[2], catalog='santos-19-21')

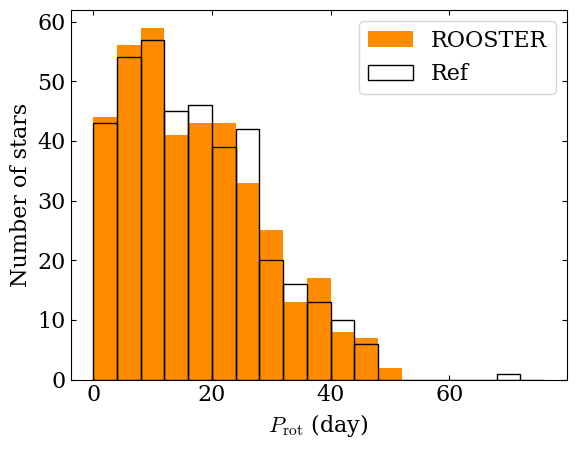

Let’s take a look at the corresponding histogram

fig, ax = plt.subplots (1, 1)

bins = np.linspace (0, 80, 20, endpoint=False)

ax.hist (prot_rooster, bins=bins, color='darkorange', label='ROOSTER')
ax.hist (prot_ref, bins=bins, facecolor='none',
        edgecolor='black', label='Ref')

ax.set_xlabel (r'$P_\mathrm{rot}$ (day)')
ax.set_ylabel (r'Number of stars')

ax.legend ()

<matplotlib.legend.Legend at 0x1337e6940>

../../_images/rooster_training_framework_30_1.png

Finally, let’s save our trained ROOSTER instance to be able to use it again later (for example in the next tutorial notebook !)

chicken.save ('rooster_instances/rooster_tutorial')
