Analysis framework for rotation period extraction

This notebook provide an example of a full composite analysis similar to what will be performed by the PLATO pipeline: results from Lomb-Scargle periodogram, autocorrelation functions and composite spectrum are used to produce a set of features exploited by an existing instance of ROOSTER to return the final rotation period of the analysed target. You will find that what is done here is very similar to the ROOSTER tutorial notebook (rooster_training_framework, you should run it before doing this tutorial), the only big difference is actually that we will use here a pre-trained ROOSTER instance !

import star_privateer as sp

sp.__version__

'1.2.0'

A simple example

import os, pathos
from tqdm import tqdm
import numpy as np
import matplotlib.pyplot as plt

if not os.path.exists ('stellar_analysis_features') :
    os.mkdir ('stellar_analysis_features')

Our working case is KIC 3733735, a well-known Kepler fast rotating star.

filename = sp.get_target_filename (sp.timeseries, '003733735')
t, s, dt = sp.load_resource (filename)

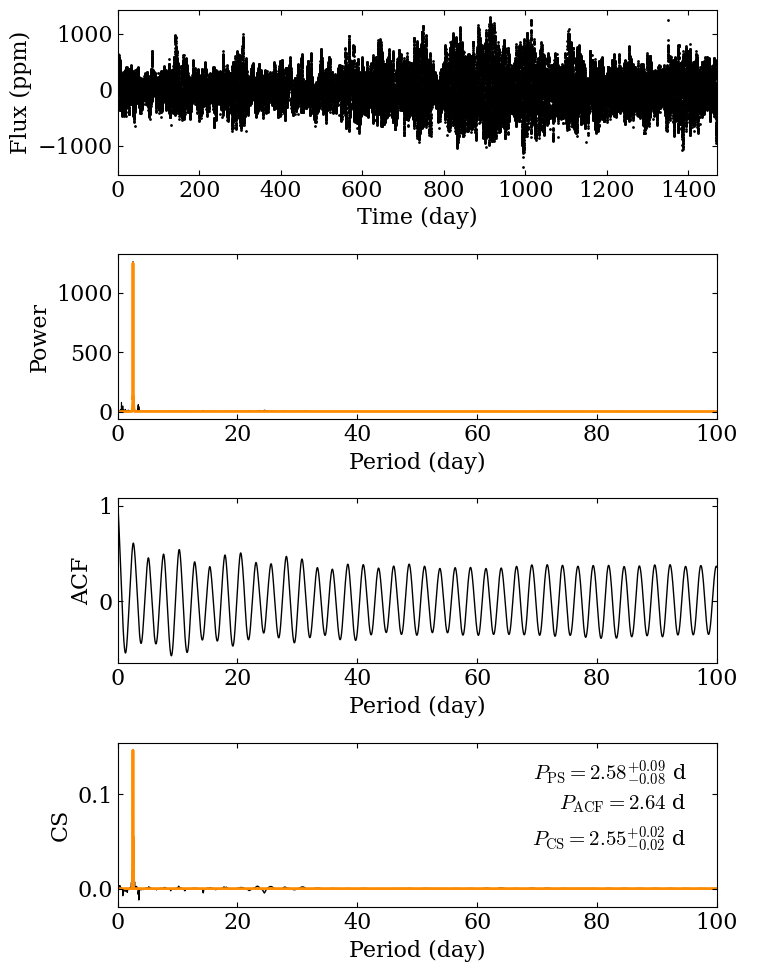

The first thing we have to do is run the analysis pipeline. In particular, we can take a look at the plots made from the different analysis methods.

(p_ps, p_acf, ps, acf,
 cs, features, feature_names, _) = sp.analysis_pipeline (t, s, pmin=0.1, pmax=60, figsize=(8,10),
                                                            wavelet_analysis=False, plot=True,
                                                            filename='stellar_analysis_features/003733735.png',
                                                        )

We then save the results to a csv file:

fileout = 'stellar_analysis_features/003733735.csv'
df = sp.save_features (fileout, 3733735, features, feature_names)

As in the previous tutorial, let’s build a feature catalog. This is actually not required here because we are analysing only one star, but this step allows to ROOSTER-analyse several stars together with a simple framework.

df = sp.build_catalog_features ('stellar_analysis_features')

Then, let’s load the ROOSTER instance that we have trained in the previous tutorial:

chicken = sp.load_rooster_instance (filename='rooster_instances/rooster_tutorial')

As previously, let’s split the DataFrame into ROOSTER required inputs:

(target_id, p_candidates,
 e_p_candidates, E_p_candidates,
 features, feature_names) = sp.create_rooster_feature_inputs (df, return_err=True)

Here, we can see that there is actually (almost) nothing to do, as the three methods have yielded the same \(P_\mathrm{rot}\) estimate. However, we need ROOSTER to provide us with the rotation score of the target. ROOSTER will also select one of the three p_candidates as the final estimate for our target.

p_candidates

array([[2.58380358, 2.63594132, 2.55499949]])

The analyseSet function implemented in ROOSTER allows to analyse the features we extracted with the analysis pipeline. By providing feature_names, we ensure that ROOSTER was trained with the same features that those we extracted.

rotation_score, prot, e_p, E_p = chicken.analyseSet (features, p_candidates, e_p_err=e_p_candidates,
                                                     E_p_err=E_p_candidates, feature_names=feature_names)

We finally get the rotation score and the final \(P_\mathrm{rot}\). A rotation score above 0.5 means that the ROOSTER analysis favours a detection of stellar surface rotation signal.

rotation_score, prot, e_p, E_p

(array([0.71]), array([2.63594132]), array([-1.]), array([-1.]))

Analysing a PLATO simulated light curves dataset

In order to illustrate the pipeline features described above, we can apply the pipeline to a larger dataset of 255 PLATO simulated light curves in order to check what we recover.

import plato_msap4_demonstrator_datasets.plato_sim_dataset as plato_sim_dataset

if not os.path.exists ('plato_sim_features') :
    os.mkdir ('plato_sim_features')

list_id = sp.get_list_targets (plato_sim_dataset)

Just as in the ROOSTER tutorial, we define a dedicated wrapper to analyse several light curves in parallel and avoid any memory leakage. Note than, we apply a 60-day high-pass finite impulse response filter to the simulated light curves (preprocess) function in order to remove low-frequency systematics while preserving at most the signature of stellar surface rotation in the data.

def analysis_wrapper (star_id) :
    """
    Analysis wrapper to speed computation
    by parallelising process and control
    memory usage.
    """
    star_id = str (star_id).zfill (3)
    fileout = 'plato_sim_features/{}.csv'.format(star_id)
    fileplot = 'plato_sim_features/{}.png'.format(star_id)
    filename = sp.get_target_filename (plato_sim_dataset, star_id, filetype='csv')
    if not os.path.exists (fileout) :
        t, s, dt = sp.load_resource (filename)
        s = sp.preprocess (t, s, cut=60)
        (p_ps, p_acf,
         ps, acf,
         cs, features,
         feature_names, fig) = sp.analysis_pipeline (t, s, pmin=0.1, pmax=60,
                                                     wavelet_analysis=False, plot=True,
                                                     filename=fileplot, figsize=(10,16),
                                                     lw=1, dpi=150, pfa_threshold=1e-6,
                                                     ls_err_smooth=True)
        df = sp.save_features (fileout, star_id, features, feature_names)
        plt.close ("all")

Let’s run the process pool:

process_pool = pathos.pools._ProcessPool (processes=4,
                                          maxtasksperchild=10)
with process_pool as p :
    list (tqdm (p.imap (analysis_wrapper,
                        list_id,
                        ),
                total=len (list_id))
          )
    p.close ()

100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 255/255 [00:00<00:00, 682.08it/s]

We can now analyse the obtained features with ROOSTER to provide our final results.

df = sp.build_catalog_features ('plato_sim_features')
df

	prot_ps	prot_acf	prot_cs	e_prot_ps	E_prot_ps	e_prot_acf	E_prot_acf	e_prot_cs	E_prot_cs	sph_ps	sph_acf	sph_cs	e_sph_ps	e_sph_acf	e_sph_cs	h_ps	fa_prob_ps	hacf	gacf	hcs
target_id
0	43.401094	36.201157	0.561108	1.111270	1.111270	-1.0	-1.0	0.177035	0.177035	805.153123	770.019836	115.450857	116.073919	162.340678	283.794897	18.798221	6.855457e-09	0.522076	0.174793	1.832052
1	0.190075	32.603958	0.168332	0.075331	0.075331	-1.0	-1.0	0.035670	0.035670	101.954701	196.573468	101.204656	137.719408	112.854259	134.832964	13.601043	1.239202e-06	0.095639	0.045796	0.190830
2	17.351053	18.062384	17.303959	1.866079	1.866079	-1.0	-1.0	0.293711	0.293711	131.602847	132.741191	131.625457	25.823343	20.800441	25.837896	69.604959	5.901339e-31	0.226074	0.162293	0.199427
3	21.034984	20.791534	20.915795	0.863260	0.863260	-1.0	-1.0	0.510110	0.510110	108.356646	108.613715	108.530608	16.108875	15.962635	15.845071	148.061720	4.984389e-65	0.316458	0.308489	0.162800
4	0.104212	28.770649	0.203401	7.389056	7.389056	-1.0	-1.0	0.014915	0.014915	125.588607	156.556259	127.149529	21.048170	43.293011	30.287731	8.150771	2.885129e-04	0.021029	0.021854	0.326287
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
250	0.154188	29.319257	14.769748	7.389056	7.389056	-1.0	-1.0	0.161341	0.161341	100.394301	204.408037	207.120398	10.193995	51.113504	57.464427	12.831760	2.674468e-06	0.832173	0.428776	0.767540
251	20.411219	19.027656	20.212371	1.531255	1.531255	-1.0	-1.0	1.228745	1.228745	187.922129	178.586179	187.910206	26.910563	32.865173	24.288289	47.956137	1.489068e-21	0.688937	0.313818	0.835032
252	0.451189	37.805314	0.494907	0.164057	0.164057	-1.0	-1.0	0.002611	0.002611	201.371699	1505.598715	218.079563	179.579290	543.923708	187.252324	179.808417	8.131985e-79	1.508467	0.751838	0.951473
253	17.348273	17.395722	17.389445	2.480552	2.480552	-1.0	-1.0	1.545704	1.545704	164.367466	164.282166	164.292887	32.200553	32.131917	32.138996	21.245341	5.932882e-10	0.613475	0.262470	0.094874
254	18.760936	18.659603	18.951406	0.584624	0.584624	-1.0	-1.0	0.405246	0.405246	1213.999574	1216.557654	1209.993163	449.871887	452.499296	444.920329	140.359111	1.103603e-61	0.813409	0.298095	0.997405

255 rows × 20 columns

(target_id, p_candidates,
 e_p_candidates, E_p_candidates,
 features, feature_names) = sp.create_rooster_feature_inputs (df, return_err=True)
rotation_score, prot, e_p, E_p = chicken.analyseSet (features, p_candidates, e_p_err=e_p_candidates,
                                                     E_p_err=E_p_candidates, feature_names=feature_names)

Next, let’s load the reference catalog for these simulated light curves in order to compare the results from our pipeline with what was injected in the data.

prot_ref = sp.get_prot_ref (target_id, catalog='plato-sim')
cond_0 = (rotation_score>0.5)
cond_1 = (np.abs (prot - prot_ref) < 0.1 * prot_ref)
cond_2 = (np.abs (prot - prot_ref) < 0.1 * prot_ref) & (rotation_score>0.5)
score_0 = target_id[cond_0].size / target_id.size
score_1 = target_id[cond_1].size / target_id.size
score_2 = target_id[cond_2].size / target_id.size
score_0, score_1, score_2

(0.803921568627451, 0.6196078431372549, 0.5411764705882353)

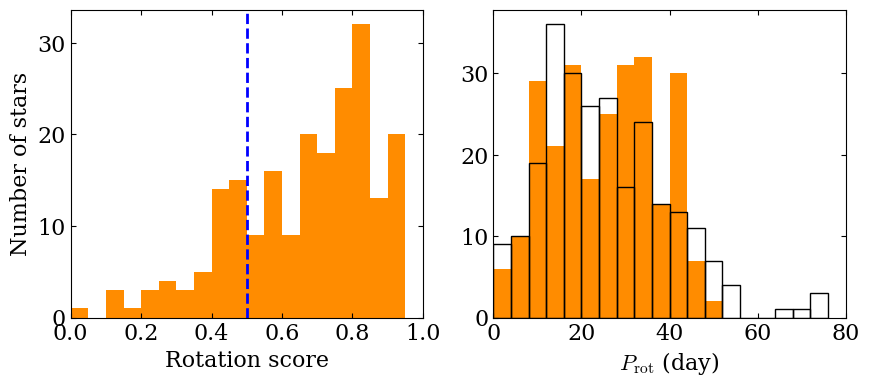

The score computed here means that we were able to successfully detect a rotation signal and recover the correct rotation period for about 61% of the stars in the sample. We can take a look at histograms to check the rotation score of our population and to compare the input rotation periods distribution to the one we recover.

fig, (ax1, ax2) = plt.subplots (1, 2, figsize=(10, 4))

bins = np.linspace (0, 1, 20, endpoint=False)
ax1.hist (rotation_score, bins=bins, color='darkorange')
ax1.axvline (0.5, ls='--', color='blue', lw=2)
bins = np.linspace (0, 80, 20, endpoint=False)
ax2.hist (prot, bins=bins, color='darkorange')
ax2.hist (prot_ref, bins=bins, facecolor='none',
         edgecolor='black', label='Ref')

ax1.set_ylabel (r'Number of stars')
ax1.set_xlabel (r'Rotation score')
ax2.set_xlabel (r'$P_\mathrm{rot}$ (day)')

ax1.set_xlim (0, 1)
ax2.set_xlim (0, 80)

(0.0, 80.0)
